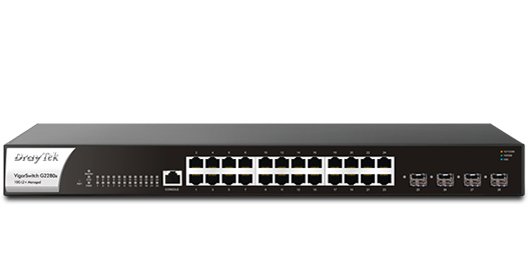

DrayTek VigorSwitch G2280x

Thương hiệu: DrayTek
6,990,000₫
  • 24 port LAN Gigabit RJ-45.
  • 4 port Gigabit/ 10Gigabit SFP+ slot.
  • 1 port console RJ-45.
  • 1 Factory Reset Button.
  • Hỗ trợ chia VLAN với chuẩn 802.1q, Port based VLAN, MAC based VLAN, Protocol-based VLAN, VoIP VLAN, Surveillance VLAN, VLAN Management Q-in-Q basic, Port Isolation.
  • Tính năng LACP giúp gộp băng thông đường truyền ( 8 group, mỗi group tối đa 8 port).
  • Tính năng Spanning Tree, Loop detection giúp tăng cường độ ổn định hệ thống.



Bảo hành: 24 tháng (adapter bảo hành 12 tháng)

PHẦN CỨNG
Port
  • 24 x 10/100/1000Mbps Giga Ethernet, RJ-45
  • 4 x 1/10 GbE SFP slot.
  • 1 cổng Console, RJ45.
Nguồn
  • Power Voltage: 100 ~ 240VAC, 50 ~ 60 HZ
Nút điều khiển
  • 1 x Factory Reset Button
Trọng lượng
  • 2.44 kg (5.0 lb)
PHẦN MỀM
Chuẩn tương thích
  • 802.3 10Base-T
  • 802.3u 100Base-T
  • 802.3ab 1000Base-T
  • IEEE802.3ae 10GBase-X
  • 802.3x Flow Control
  • 802.3 Auto-Negotiation
  • 802.1q Tag-based VLAN
  • 802.1p Class of Service
  • 802.1d STP
  • 802.1w RSTP
  • 802.1s MSTP
  • 802.3ad LACP
  • 802.1ad QinQ
  • 802.1x Port Access Control
  • 802.1AB LLDP
  • 802.3az EEE
Management
Web Interface: HTTP, HTTPS
Command Line Interface:Telnet, SSH
OpenVPN Client: Certificate-based authentication
User Authentication: Local Database, RADIUS, TACACS+
sFlow
SNMP: v1, v2c, v3
Private MIB: Có
RMON Group: 1, 2, 3, 9
LLDP: LLDP-MED, Media Endpoint Discovery Extension
Mail Alert: Port Status, Port Speed, System Restart, IP Conflict
Syslog: Có
2-Level Admin Privilege: Có
Multiple Admin Accounts: Có
Managed by Vigor Router SWM: Có
Config File Export/Import: Có
Dual Image: Có
SNTP (Simple Network Time Protocol)
Diagnostics Tools: Port Mirroring, Ping, Cable Test, Fan Test

     Layer 3 Features: Static Route, VLAN Route

Chất lượng dịch vụ
  • Support 8 Queues
  • Rate Limit
  • Port-based (Ingress/Egress)
  • Queue Setting
  • WRR
  • Strict Priority
  • Class of Service
  • 802. 1p CoS
  • DSCP
  • CoS-DSCP
  • IP Precedence
Tính năng nâng cao

Security

  • Support Storm Control - Broadcast, Unknown Multicast, Unknown Unicast
  • DoS Attack Prevention

Multicast

  • Up to 256 Multicast Groups
  • IGMP Snooping v2/v3 (BISS)
  • IGMP Querier
  • Immediate Leave

Link Aggregation

  • Supports 8 Link Aggregation Groups with Static & LACP types
  • Up to 8 Ports for Each Group
  • Support Traffic Load Balancing

Diagnostics

  • CPU/RAM/Port Utilization
  • Event Log
  • Port Mirroring
  • Ping
  • Port-based Cable Test

VLAN

  • Support IEEE 802.3Q VLAN
  • Tag-based
  • Port-based
  • Protected Port
  • Voice VLAN (OUI Mode)
  • Management VLAN

 Layer 3 Features:

  • Static Route
  • VLAN Route
