PHẦN CỨNG |
---|

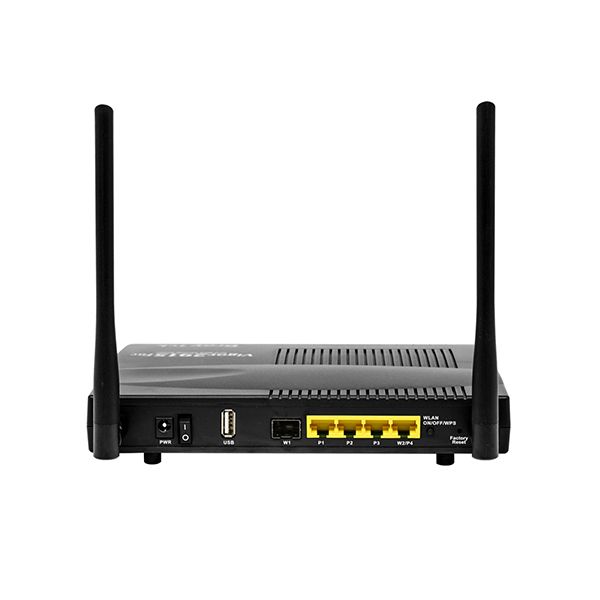

Port | - WAN1, SFP Slot Gigabit (100/1000Mbps).
- WAN 2 được chuyển đổi từ LAN 4.
- 4 port LAN Gigabit (10/100/1000Mbps, RJ-45).
- 1 port USB 3G/4G.
|
Nguồn | - Power Adapter DC 12V/1A
- Max. Power 10 watt
|
Antenna | - 2 Antena đa hướng
- 4 dBi cho 5GHz, 2 dBi cho 2.4GHz
|
Nút điều khiển | - 1 x Factory Reset Button
- 1x Wireless On/OFF/WPS Button
|
Kích thước | |
Trọng lượng | |
KHÔNG DÂY |
---|
Chuẩn tương thích | - 802.11n 2x2 MIMO 400 Mbps
- 802.11ac 2x2 MIMO 867 Mbps
|
Băng tần | |
Tốc độ Wi-Fi | - 400Mbps ở băng tần 2.4Ghz
- 867Mbps ở băng tần 5Ghz
|
Wireless Security | - WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3 persional
- Pre-Shared Key, 802.1X
|
Tính năng Wi-Fi | - Wireless AP
- Wireless Client List
- Wireless LAN Isolation
- Wireless Wizard
- Hidden SSID
- WPS
- MAC Address Access Control
- Access Point Discovery
- WDS (Wireless Distribution System)
- Multiple SSID
- SSID VLAN Grouping with LAN Port (Port-based VLAN)
|
PHẦN MỀM |
---|
WAN | Ethernet - IPv4- DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1p/q Multi-VLAN Tagging
- IPv6- Tunnel Mode: PPP, TSPC, AICCU, 6in4, 6rd
Dual Stack:DHCPv6 Client, Static IPv6, DSLite* - USB WAN
- Outbound Policy-based Load-balance
- WAN Connection Failover
- 30,000 NAT Sessions
|
Network | - DHCP Client/Relay/Server
- RADVD for IPv6
- DHCPv6 Server
- Static IPv6 Address Configuration
- IGMP Proxy V2/V3
- IGMP Snooping
- Dynamic DNS
- NTP Client
- RADIUS Client
- DNS Cache/Proxy
- UPnP 30 Sessions
- Routing Protocol:
- Static Routing
- RIPv2
- VLAN Tagging(802. 1q) on LAN*
- Support Route Policy Function
|
IPv6 Network | - PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
|
Management | - Web-based User Interface (HTTP/HTTPS)
- Quick Start Wizard
- CLI (Command Line Interface, T elnet/SSH)
- Administration Access Control
- Configuration Backup/Restore
- Built-in Diagnostic Function
- Firmware Upgrade via TFTP/FTP/HTTP/TR-069
- Logging via Syslog
- SNMP V2/V3
- Management Session Time Out
- Two-level Management (Admin/User Mode)
- External Device
- TR-069
|
Chất lượng dịch vụ | - QoS :
- Guarantee Bandwidth for V oIP (VoIP QoS)
- Class-based Bandwidth Guarantee by User-defined Traffic Categories
- DiffServ Code Point Classifying
- 4-level Priority for Each Direction (Inbound/Outbound)
- Bandwidth Borrowed
- Bandwidth/Session Limitation
- Layer-3 (TOS/DSCP) QoS Mapping
- Smart Bandwidth Limitation (Triggered by Traffic/Session)
|
VPN | - Offer 16 VPN Tunnels and 8 SSL VPN tunnels
- Protocol : PPTP, IPSec, L2TP, L2TP over IPSec
- Encryption : MPPE and Hardware-based AES/DES/3DES
- Authentication : MD5, SHA-1
- IKE Authentication : Pre-shared key and Digital Signature (X.509)
- LAN-to-LAN, Host-to-LAN
- IPsec NAT-traversal (NAT-T)
- Dead Peer Detection (DPD)
- VPN Backup Mode
- DHCP over IPSec
- VPN Pass-through
- VPN Wizard
- mOTP
|
Tính năng nâng cao | Firewall - Multi-NAT, DMZ Host, Port-redirection and Open Port
- Object-based Firewall
- MAC Address Filter
- SPI (Stateful Packet Inspection) (Flow Track)
- DoS/ DDoS Prevention
- IP Address Anti-spoofing
- E-mail Alert and Logging via Syslog
- Bind IP to MAC Address
- Time Schedule Control
- User Management
CSM - (Content Security Management)
- IM/P2P Application
- GlobalView Web Content Filter (Powered by CYREN )
- URL Content Filter :
- URL Keyword Blocking (Whitelist and Blacklist)
Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking, - Excepting Subnets
|
USB | - File Sharing:
- Support FAT32 File System
- Support FTP Function for File Sharing
- Support Samba for File Sharing
- 3.5G (HSDPA)/4G (LTE)* as WAN3
|
