PHẦN CỨNG |
---|

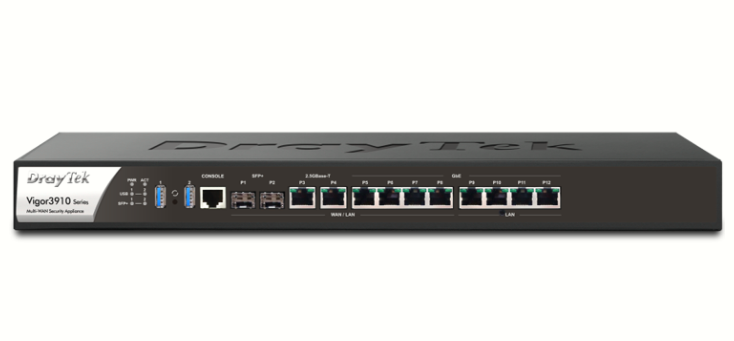

Port | WAN - 1x 10G/1G SFP+ Fiber Slot (P1)
- 1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P3)
- 4x 1G/100M/10M Ethernet, RJ-45 (P5-P8)
LAN - 1x 10G/1G SFP+ Fiber Slot (P2)
- 1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P4)
- 4x 1G/100M/10M Ethernet, RJ-45 (P9-P12)
USB Console |
Nguồn | - AC 100~240V, 50/60Hz
- Power Consumption 35 watt
|
Nút điều khiển | |
Kích thước | |
Trọng lượng | |
PHẦN MỀM |
---|
WAN | Multi-WAN (10Gb/2.5Gb/1Gb)- Outbound Policy-based Load-balance
- WAN Connection Failover
WAN Protocol- DHCP Client
- Static IP
- PPPoE
- PPTP
- L2TP
|
Network | - Packet Forwarding Acceleration
- DHCP client/relay/server
- DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
- IGMP v2/v3
- LAN DNS /DNS Forwarding
- Dynamic DNS
- NTP client
- Call scheduling
- RADIUS /TACACS+ Client
- RADIUS Server
- Active Directory /LDAP compatible (client)
- DNS cache/proxy
- UPnP 50 sessions
- Wake on LAN
- Bonjour service
- Routing protocol :
- Static routing (IPv4 static route 40 entries, and IPv6 static route 40 entries)
- RIP v1/v2
|
Management | - Web-Based User Interface (HTTP/HTTPS)
- Quick Start Wizard
- CLI (Command Line Interface, Telnet/SSH)
- Administration Access Control
- Configuration Backup/Restore
- Built-in Diagnostic Function
- Firmware Upgrade via TFTP/FTP/HTTP/TR-069
- Logging via Syslog
- SNMP Management with MIB-II
- Management Session Time Out
- 2-level management (Admin/User Mode)
- TR-069 Management
- TR-104 Management
|
Chất lượng dịch vụ | - QoS :
- Guarantee Bandwidth for VoIP
- Class-based Bandwidth Guarantee by User-defined Traffic Categories
- DiffServ Code Point Classifying
- 4-level Priority for Each Direction (Inbound/Outbound)
- Bandwidth Borrowed
- Bandwidth / Session Limitation
- Layer-2 (802.1p) and Layer-3 (TOS / DSCP) QoS Mapping *
|
VPN | VPN - Up to 500 VPN Tunnels (including 200 SSL VPN tunnels)
- Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
- Encryption: MPPE and Hardware-based AES/DES/3DES
- Authentication: MD5, SHA-1
- IKE Authentication: Pre-shared Key and Digital Signature (X.509)
- LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
- DHCP over IPSec
- IPSec NAT-Traversal (NAT-T)
- Dead Peer Detection (DPD)
- VPN Pass-Through
- mOTP
|
Tính năng nâng cao | Firewall- DMZ Host, Port-redirection(Up to 40 entries) and Open Port(Up to 40 entries)
- Object-based Firewall
- MAC Address Filter
- SPI (Stateful Packet Inspection) (Flow Track)
- DoS Prevention
- IP Address Anti-Spoofing
- E-mail alert and logging via Syslog
- Bind IP to MAC Address
- Time Schedule Control
Central Device Management - AP Management : 30 nodes (independent with External Device feature)*
- Central VPN Management : 8 nodes
- Switch Management : 10 nodes *
Content Security Management (CSM)- APP Enforcement
- Support APPE Signature Upgrade by license.
- URL Content Filter
- Access Control : URL Keyword Blocking (White/Black List)
- Web Feature : Java Applet, Cookies, Active X, Compressed,Executable,Multimedia File Blocking
- Web Content Filter (support Cyren and BPjM )
|
USB | - File System :
- Support FAT32 / FAT16 file system
- Support FTP function for File Sharing
|
