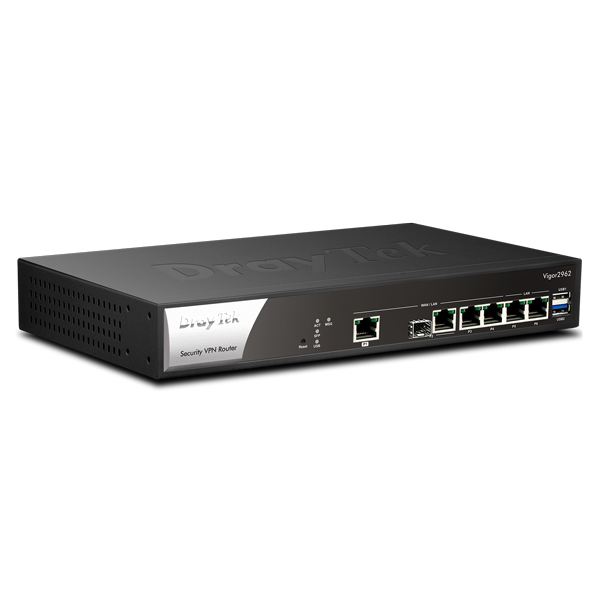

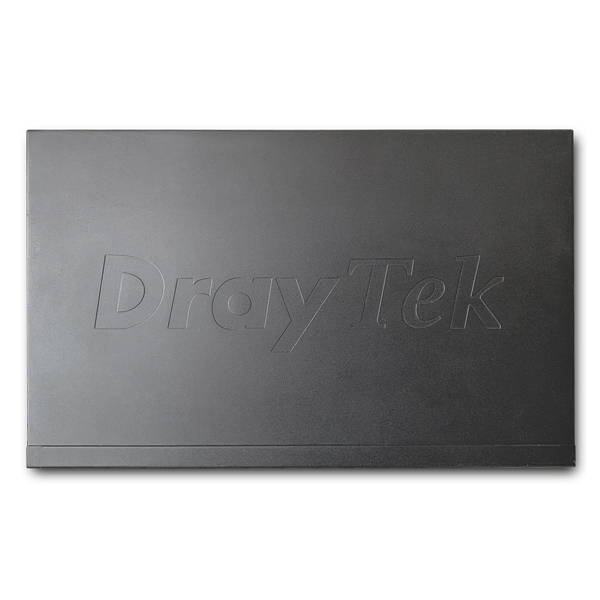

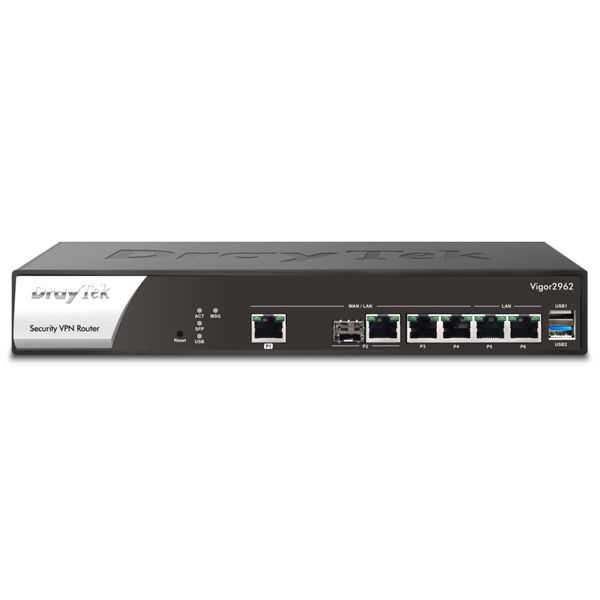

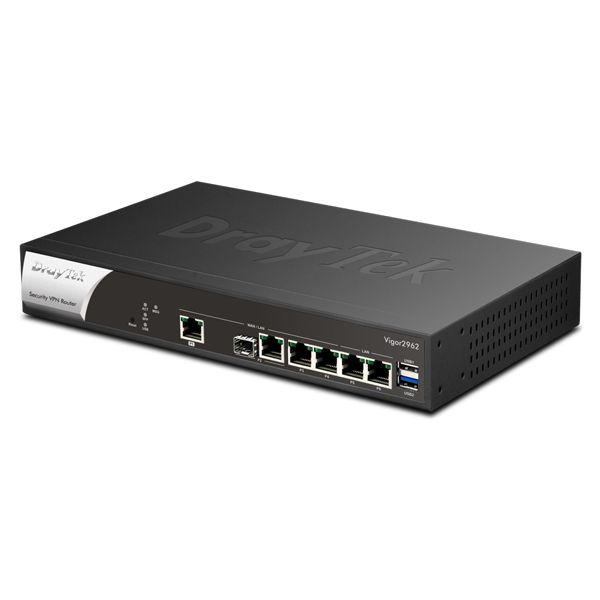

Draytek Vigor2962

Thương hiệu: DrayTek
8,599,000₫
  • 4 cổng WAN/LAN Switchable (có thể chuyển đổi WAN/LAN linh hoạt và cho phép chạy đối đa 2 WAN đồng thời):
    • ​1x 2.5G Ethernet, RJ-45
    • 1x GbE/SFP Combo
    • 2x GbE, RJ-45
  • 2 cổng LAN Gigabit, RJ-45. 2 cổng USB dùng để kết nối thiết bị lưu trữ...

  • Dual-WAN Load Balance/Failover, hỗ trợ đường truyền đa dịch vụ (IPTV, Interne, VoIP...)
  • 300.000 NAT Session, Throughtput: 2.2Gbps (enable Hardware Acceleration), chịu tải 300 user. Hỗ trợ triển khai dịch vụ cao cấp: Static IP, PPOE, PPTP/L2TP, DHCP…
  • VPN 200 kênh (PPTP, L2TP, IPSec(IKEv1, IKEv2), SSL), VPN Trunking (LoadBalancing/Backup).
  • Kiểm soát và quản lý băng thông giúp giúp tối ưu đường truyền Internet.
  • Firewall SPI dựa trên đối tượng, quản lý nội dung (CSM).

Bảo hành: 24 tháng

PHẦN CỨNG
Port
  • WAN/LAN Switchable Port (chạy tối đa 2 WAN đồng thời):
    • 1x 2.5G Ethernet, RJ-45
    • 1x GbE/SFP Combo
    • 2x GbE, RJ-45
  • LAN Port:
    • 2x GbE, RJ-45
Nguồn
  • AC 100-240V/1A
Nút điều khiển
  • 1 x Factory Reset Button
PHẦN MỀM
WAN
  • Ethernet WAN
    • DHCP Client
    • Static IP
    • PPPoE
    • PPTP / L2TP (WAN-2 only)
    • 802.1q Multi-VLAN Tagging
  • IPv6 Connection Type
    • Dual Stack: PPP, DHCPv6 Client, Static IPv6
    • Tunnel Mode: TSPC, AICCU, 6rd, 6in4 Static Tunnel
  • USB WAN
    • PPP(3G) / CDC driver(3G) / support IPv6 protocol :TSPC/AICCU

Dual WAN

  • Load-Balance / Route Policy
  • Outbound policy-based load-balance
  • WAN Connection Failover
  • Multiple-VLAN
Network
  • Hotspot Web Portal
  • Packet Forwarding Acceleration
  • DHCP client/relay/server
  • DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
  • IGMP v2/v3
  • LAN DNS /DNS Forwarding
  • Dynamic DNS
  • NTP Client
  • RADIUS /TACACS+ Client
  • Internal RADIUS Server
  • Active Directory /LDAP compatible (client)
  • DNS Cache/Proxy and LAN DNS
  • Wake on LAN
  • Bonjour service
  • Routing Protocol:
    • Static Routing
    • RIP v1/v2
    • BGP
  • Triple-Play Application
    • IGMP snooping/proxy
  • 20 x Multiple Subnet LAN
Management
  • Web-based User Interface (HTTP/HTTPS)
  • CLI (Command Line Interface, Telnet/SSH)
  • Administration Access Control
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP/HTTP/TR-069
  • Logging via Syslog
  • SNMP v2/v3
  • Support SMS/E-mail Alert
  • Management Session Time Out
  • Two-level Management (Admin/User Mode)
  • External device detection (master mode)
  • TR-069/TR-104
  • Support Multiple-Firmware Upgrade Utility (MFUU)
  • Dashboard
Chất lượng dịch vụ
  • QoS
    • Guarantee bandwidth for VoIP
    • Class-based bandwidth guarantee by user-defined traffic categories
    • DiffServ Code Point classifying
    • 4-level priority for each direction (Inbound/Outbound)
    • Bandwidth borrowed
  • Bandwidth/Session limitation
    • Smart Bandwidth Limit
    • config by ip range
    • Layer-3 (TOS/DSCP) QoS
  • Layer-2 (802.1p) QoS
  • WAN budget
VPN
  • Up to 200 VPN Tunnels (including 50 OpenVPN + SSL VPN tunnels)
  • VPN Wizard
  • VPN Trunk with Backup / Load Balance
  • Protocol : PPTP, IPsec, L2TP, L2TP over IPsec, GRE over IPSec
  • Encryption : MPPE and hardware-based AES/DES/3DES
  • Authentication : MD5, SHA1, SHA256
  • IKE Authentication : Pre-shared Key and Digital Signature (X.509)
  • LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
  • DHCP over IPsec
  • IPsec NAT-traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Pass-through
  • mOTP
Tính năng nâng cao

Firewall

  • DMZ Host:Port-redirection, Open Port, Port Triggering
  • User-based / Rule-based Firewall
  • Object-based Firewall:SPI (Stateful Packet Inspection) (Flow Track)
  • DoS Prevention
  • Time Schedule Control
  • DNS Filter Enhancement
  • User Management
  • Firewall Wizard Mode and Advanced Mode

 CSM (Content Security Management)

  • APP Enforcement
    • Support APPE Signature Upgrade by license
  • URL Content Filter
    • Access Control : URL Keyword Blocking (White/Black List)
    • Web Feature : Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
  • Web Content Filter (support Cyren and BPjM)
  • DNS Filter

Central Device Management

  • AP Management
  • VPN Management
  • Switch Management
  • External Devices
USB
  • Support file sharing
