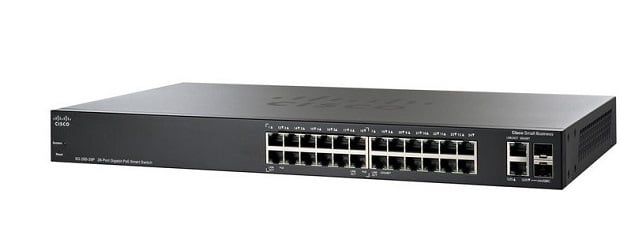

Switch Cisco SG250-26P 26-Port (SG250-26P-K9)

Switch Cisco SG250-26P 26-Port (SG250-26P-K9)

24-port PoE+ Gigabit + 2-port Combo (RJ-45 + SFP).(Công suất mỗi port 30W, Công suất tối đa switch 62W).
Performance: Capacity in millions of packets per second (mpps) (64-byte packets): 38.69; Switching capacity in gigabits per second (Gbps) 52 Gbps.
Hỗ trợ Layer 3 routing : IPv4 routing : Up to 32 static routes and up to 16 IP interfaces; IPv6 routing; Layer 3 interface; Classless Interdomain Routing (CIDR); DHCP relay at Layer 3 Relay; User Datagram Protocol (UDP) relay.
Layer 2: Port grouping up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation, Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs), Head-of-line (HOL) blocking HOL blocking prevention.
Internet Group Management Protocol(IGMP) versions 1 and 2 snooping: IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups.


13,500,000₫

ModelSG250-26P-K9-EU
Performance
Switching capacity and forwarding rateCapacity in Millions of Packets per Second (mpps) (64-byte packets): 38.69
Switching Capacity in Gigabits per Second (Gbps): 52
Jumbo framesFrame sizes up to 10 KB supported on 10/100 and Gigabit Ethernet interfaces (9 KB for SG200-08 and SG200-08P)
MAC tableUp to 8,000 MAC addresses
Total system ports26 Gigabit Ethernet
RJ-45 ports24 Gigabit Ethernet
Uplink ports2 Gigabit Ethernet combo
Layer 2 Switching
Spanning Tree Protocol (STP)Standard 802.1d STP support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
Port groupingSupport for IEEE 802.3ad Link Aggregation Control Protocol (LACP): Up to 4 groups, Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLANSupport for up to 256 VLANs simultaneously (out of 4096 VLAN IDs). 16 VLANs supported in SG200-08 and SG200-08P
Port-based and 802.1Q tag-based VLANs
Voice VLANVoice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS
Internet Group Management Protocol (IGMP) versions 1 and 2 snoopingIGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (16 for SG200-08 and SG200-08P)
Head-of-line (HOL) blockingHOL blocking prevention
Security
IEEE 802.1X (Authenticator role)802.1X: RADIUS authentication, MD5 hash
Port securityLocks MAC addresses to ports, and limits the number of learned MAC addresses
Storm controlBroadcast, multicast, and unknown unicast
DoS preventionDoS attack prevention
Quality of Service
Priority levels4 hardware queues
SchedulingStrict priority and weighted round-robin (WRR)
Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)
Class of servicePort based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)
Rate limitingIngress policer, per VLAN and per port
Power over Ethernet
802.3af PoE or 802.3at PoE+ delivered over any of the RJ-45 network ports within the listed power budgetsSwitches support 802.3af, 802.3at, and Cisco pre-standard (legacy) PoE with maximum power of 30 W per port.
This applies to the following PoE-enabled models; the maximum number of ports providing PoE power simultaneously is determined by the total PoE budget for the switch listed as below:
PoE Power Budget: 195 W
Number of Ports That Support PoE: 24
Pre-standard PoESupport Cisco Pre-Standard PoE
Intelligent PoE power managementSupport the granular power negotiation with CDP/LLDP communication with PD devices after IEEE classification
Environmental
Dimensions (W x H x D)440 x 44 x 257 mm
Unit weight3.81 kg
Power100 to 240V 50 to 60 Hz, internal, universal
