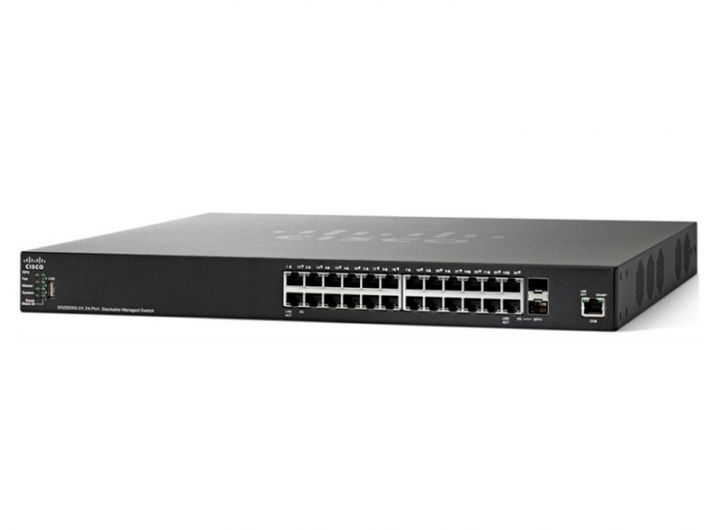

Switch Cisco SF350-24 24-Port (SF350-24-K9)
24 10/100 Mbps ports + 2 Gigabit copper/SFP combo + 2 SFP ports.
Performance: Capacity in millions of packets per second (mpps) (64-byte packets): 9.52 ; Switching capacity in gigabits per second (Gbps): 12.8.
Layer 2 Switching : Spanning Tree Protocol, Port grouping, VLAN, Voice VLAN, Multicast TV VLAN, Q-in-Q VLAN, Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP), Unidirectional Link Detection (UDLD), Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2, Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping, IGMP Querier, Head-Of-Line (HOL) blocking, Loopback Detection, Jumbo frames..
Layer 3: IPv4 routing, IPv6 routing, Layer 3 interface, Classless Interdomain Routing (CIDR), DHCP relay at Layer 3, User Datagram Protocol (UDP) relay.
Green (power efficiency) : Energy detect, Cable length detection, Time-based port operation, ...
Tham khảo datasheet về các tính năng của Switch : Performance, Layer 2 Switching, Layer 3, Security, Quality of Service, Standards, IPV6, Management, Green (power efficiency) ...
Product Name | SF350-24-K9 24-Port 10/100 Managed Switch |
Manufacturer Part Number | SF350-24-K9 |
Product Series | 350 |
Product Model | SF350-24-K9 |
Hardware | |
Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 9.52 |
Switching Capacity in Gigabits per Second (Gbps) | 12.8 |
Buttons | Reset button |
Cabling type | Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T |
LEDs | System, Link/Act, PoE, Speed, LED power saving option |
Flash | 256 MB |
CPU memory | 512 MB |
Packet Buffer | 12 Mb |
Environmental | |
Unit dimensions (W x H x D) | 440 x 44 x 202 mm (17.3 x 1.45 x 7.95 in) |
Unit weight | 2.72 kg (6.0 lb) |
Power | 100-240V 50-60 Hz, internal, universal |
Power Dedicated to PoE | N/A |
Number of Ports That Support PoE | N/A |
Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Operating temperature | 32° to 122°F (0° to 50°C) |
Storage temperature | –4° to 158°F (–20° to 70°C) |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 10% to 90%, relative, noncondensing |
Acoustic noise and MTBF | |
FAN (Number) | Fanless |
Acoustic Noise | N/A |
MTBF @40C (hr) | 562,313 |
Miscellaneous | |
Package Contents | ● Cisco 350 Series Switch ● Power Cord (Power Adapter for Desktop SKUs) ● Mounting Kit included in all SKUs, including desktop models ● Console Cable ● Quick Start Guide |
Other Information | |
Product Family | 350 |
