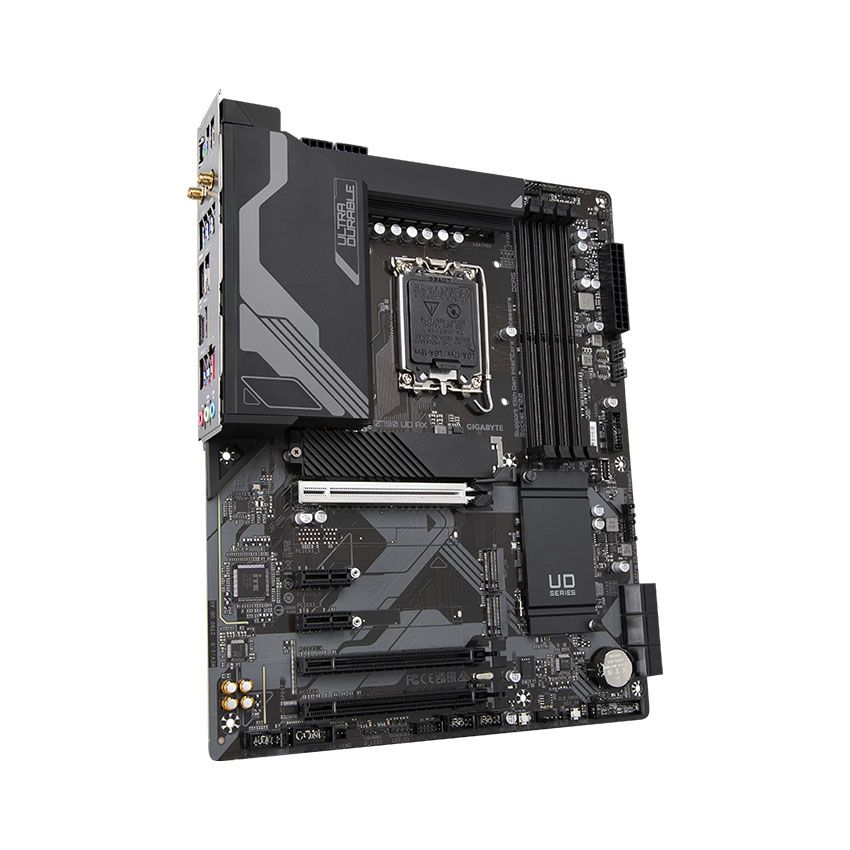

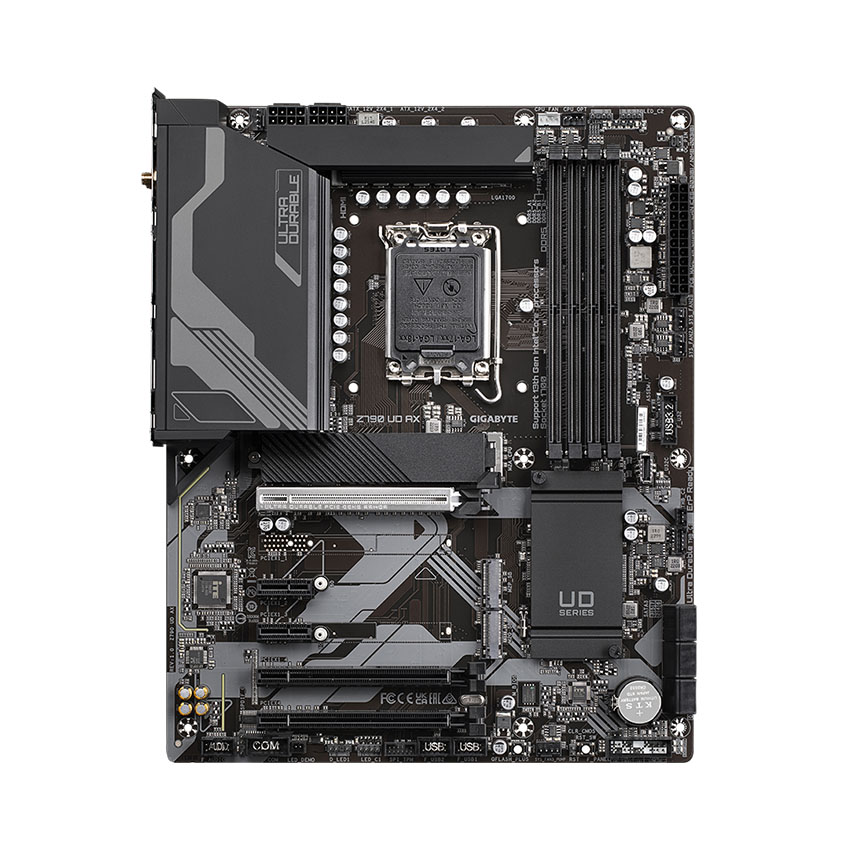

Mainboard Gigabyte Z790 UD AX​ DDR5

Thương hiệu: GIGABYTE
6,690,000₫
  • Hỗ trợ CPU Intel thế hệ thứ 12 và 13
  • Socket: LGA1700 , Chipset: Z790
  • Hỗ trợ RAM: 4 khe DDR5, tối đa 128Gb
  • Chuẩn mainboard: ATX

Bảo hành: 36 tháng

CPU hỗ trợIntel
ChipsetZ790
RAM hỗ trợSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
Khe cắm mở rộngCPU:
 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
 Chipset:
 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Ổ cứng hỗ trợCPU:
 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
 Chipset:
 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
 6 x SATA 6Gb/s connectors
Cổng kết nối (Internal)1 x 24-pin ATX main power connector
 2 x 8-pin ATX 12V power connectors
 1 x CPU fan header
 1 x water cooling CPU fan header
 3 x system fan headers
 1 x system fan/water cooling pump header
 2 x addressable LED strip headers
 2 x RGB LED strip headers
 3 x M.2 Socket 3 connectors
 6 x SATA 6Gb/s connectors
 1 x front panel header
 1 x front panel audio header
 1 x S/PDIF Out header
 1 x USB Type-C® header, with USB 3.2 Gen 1 support
 1 x USB 3.2 Gen 1 header
 2 x USB 2.0/1.1 headers
 1 x serial port header
 2 x Thunderbolt™ add-in card connectors
 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
 1 x reset button
 1 x Q-Flash Plus button
 1 x reset jumper
 1 x Clear CMOS jumper

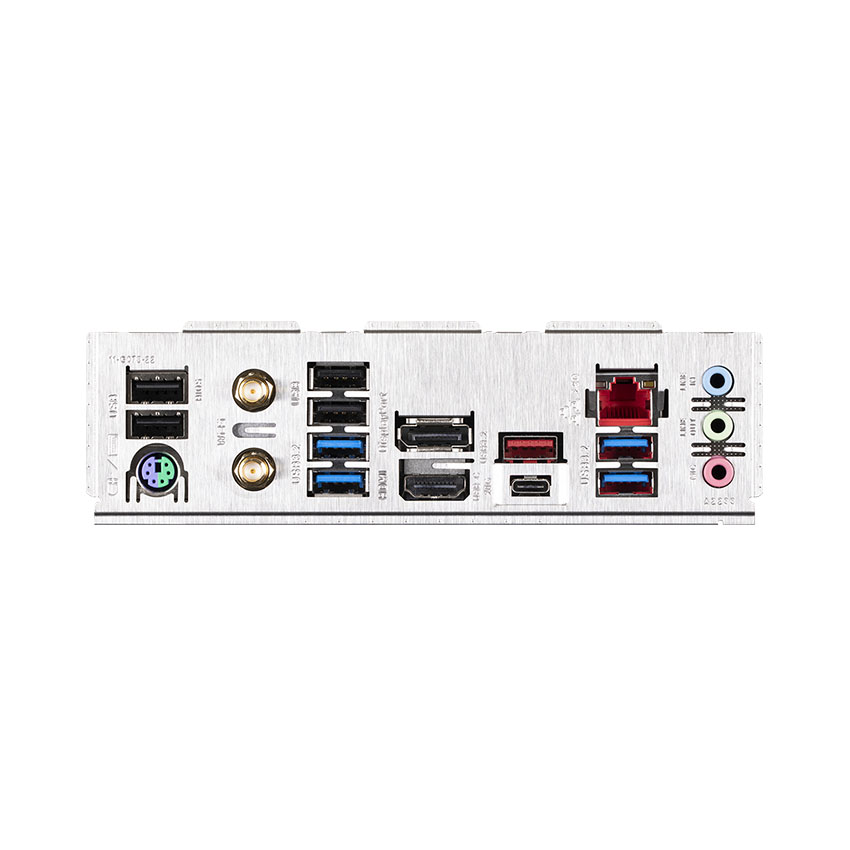

Cổng kết nối (Back Panel)1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
 1 x USB 3.2 Gen 2 Type-A port (red)
 4 x USB 3.2 Gen 1 ports
 4 x USB 2.0/1.1 ports
 2 x SMA antenna connectors (2T2R)
 1 x HDMI 2.0 port
 1 x DisplayPort
 1 x RJ-45 port
 3 x audio jacks
LAN / WirelessRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
 AMD Wi-Fi 6E RZ616 (MT7922A22M)
 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
 BLUETOOTH 5.2
 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡATX Form Factor; 30.5cm x 24.4cm
