CPU hỗ trợ | Intel |
Chipset | Intel Z790 Chipset |
RAM hỗ trợ | 2 x DIMM, Max. 64GB, DDR5
7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory |
Khe cắm mở rộng | Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode) |
Ổ cứng hỗ trợ | Total supports 2 x M.2 slots and 2 x SATA
6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2280 (supports
PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*** M.2_1 comes from Intel® Z790 Chipset
when switched to PCIe 4.0 x4 mode
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports. |
Cổng kết nối (Internal | Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2x2 connector (support(s)
USB Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Thermal Sensor header
2 x USB Type-C® connectors to Install ROG
FPS-II card
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Thermal Sensor header
1 x Front Panel header
1 x Alternative PCIe Mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports |

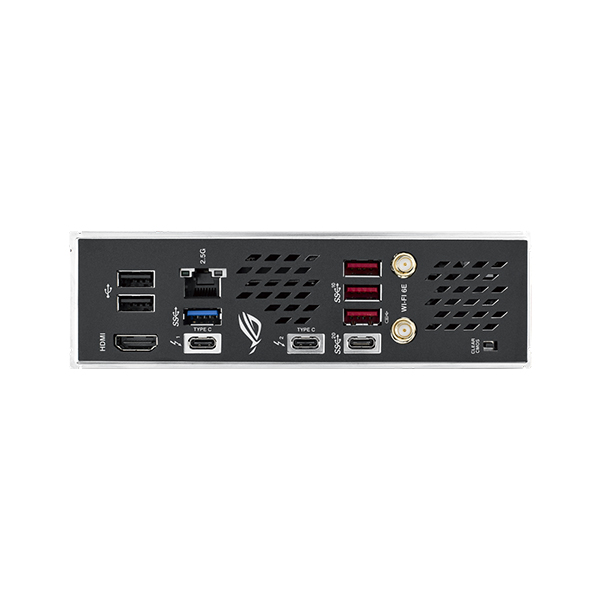

Cổng kết nối (Back Panel) | 2 x Thunderbolt™ 4 USB Type-C® port(s)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
(supports ROG STRIX HIVE)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Clear CMOS button |
LAN / Wireless | Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard |
Kích cỡ | Mini-ITX Form Factor
6.7 inch x 6.7 inch( 17cm x 17cm) |
