CPU hỗ trợ | - Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
- Digi Power design
- 10 Power Phase design*Not compatible with AMD Athlon™ Processors. |
Chipset | B550 |
RAM hỗ trợ | 4 x DDR4 DIMM Slots ( 128GB ) |
Khe cắm mở rộng | 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs
2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
1 x PCI Express 3.0 x1 Slot
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
Ổ cứng hỗ trợ | 6 x SATA3 6.0 Gb/s 1 x Hyper M.2 Socket (M2_1) 1 x M.2 Socket (M2_2 |
Cổng kết nối (Internal) | 1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |

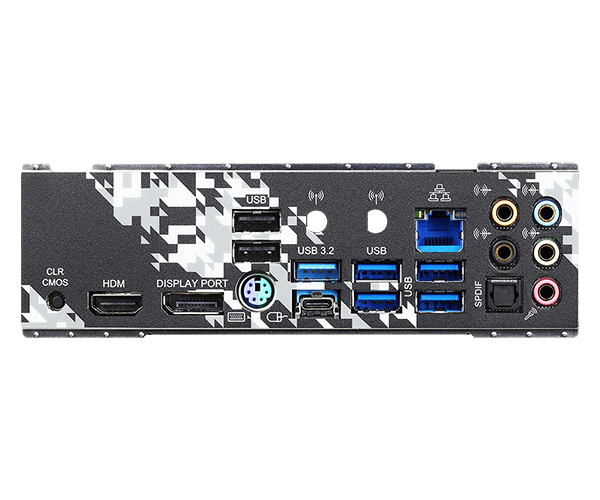

Cổng kết nối (Back Panel) | 2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
LAN / Wireless | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
Kích cỡ | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
