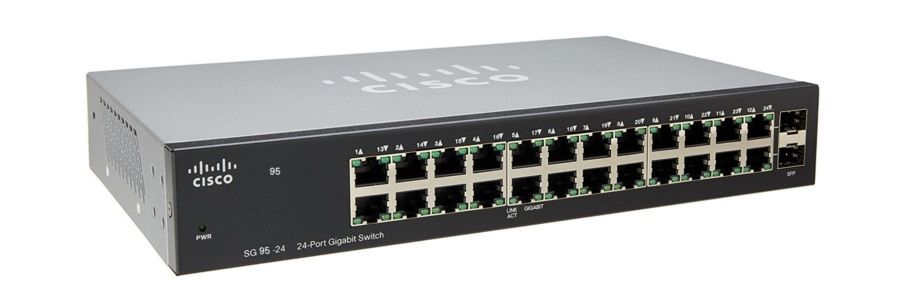

Switch Cisco SG95-24 24 -Port

Thương hiệu: CISCO
Liên hệ

24 cổng 10/100/1000Mbps tự động chuyển chế độ cáp thẳng hoặc chéo (MDI/MDI-X). 02 Slot Mini GBit sử dụng các module MiniGbit SFP
Hoạt động ở 2 chế độ half- or full-duplex cho mỗi cổng.
Address Learning and Aging, and Data Flow Control giúp tối ưu truyền dữ liệu. Thiết kế gắn vào Rack.


Switch Cisco SG95-24

Ports

SG95-24: 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots

automatic medium dependent interface (MDI) and MDI crossover (MDI-X); auto-negotiated port for connecting 10-, 100-, 1000-Mbps devices

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet

Cabling type

Category 5e or better

LED indicators

System/PWR, link/activity, 100M*, cable diagnostics, loop detection, gigabit,* mini-GBIC* *if present

Power supply

SG95-24: 110-240VAC, 50-60 Hz, internal, universal

Physical dimensions (W x D x H)

SG95-24: 279.4x44.45x170mm

Weight

SG95-24: 3.59 lb. (1.63 kg

Switching capacity

SG95-24: 48 Gbps

Forwarding capacity

Forwarding rate in million packets per second (mpps) (based on 64-byte packets): SG95-24: 35.7 mpps

Compliance/certifications

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
