CPU hỗ trợ | Intel |
Chipset | Z790 |
RAM hỗ trợ | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules |
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
Khe cắm mở rộng | CPU: |
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
Chipset: | |
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) | |
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) | |
Ổ cứng hỗ trợ | CPU: |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
Chipset: | |
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) | |
6 x SATA 6Gb/s connectors | |
Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
1 x 4-pin ATX 12V power connector | |
1 x CPU fan header | |
1 x water cooling CPU fan header | |
3 x system fan headers | |
1 x system fan/water cooling pump header | |
2 x addressable LED strip headers | |
2 x RGB LED strip headers | |
3 x M.2 Socket 3 connectors | |
6 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x S/PDIF Out header | |
1 x USB Type-C® header, with USB 3.2 Gen 1 support | |
1 x USB 3.2 Gen 1 header | |
2 x USB 2.0/1.1 headers | |
1 x serial port header | |
2 x Thunderbolt™ add-in card connectors | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x reset button | |
1 x Q-Flash Plus button | |
1 x reset jumper | |
1 x Clear CMOS jumper | |

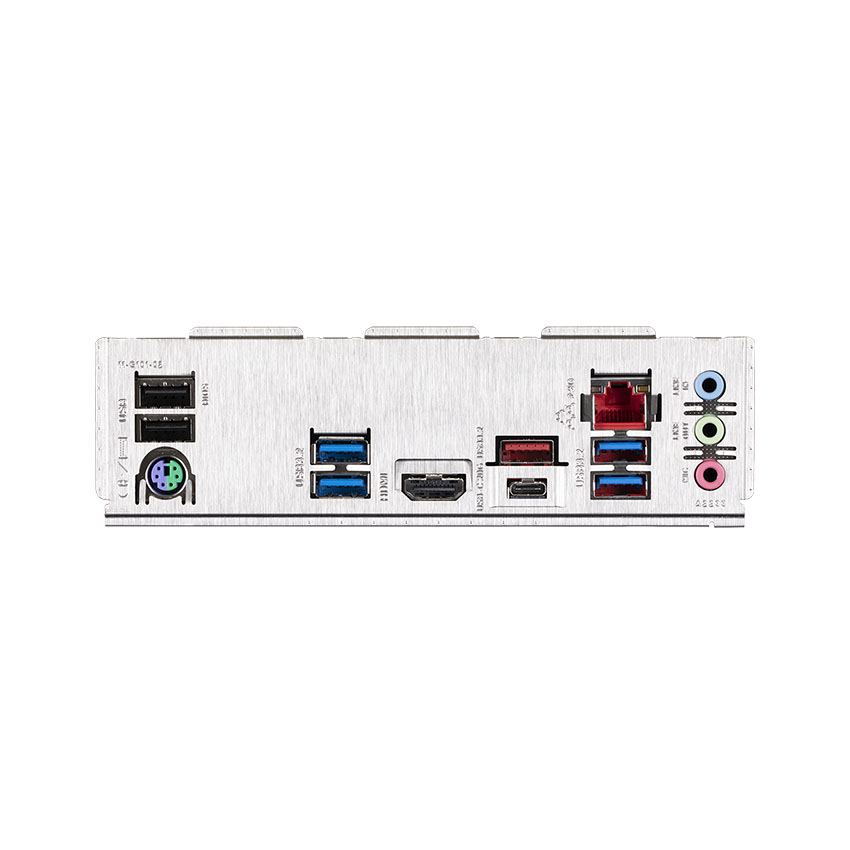

Cổng kết nối (Back Panel) | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
1 x USB 3.2 Gen 2 Type-A port (red) | |
4 x USB 3.2 Gen 1 ports | |
2 x USB 2.0/1.1 ports | |
1 x HDMI 2.0 port | |
1 x RJ-45 port | |
3 x audio jacks | |
LAN / Wireless | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Kích cỡ | ATX Form Factor; 30.5cm x 24.4cm |
