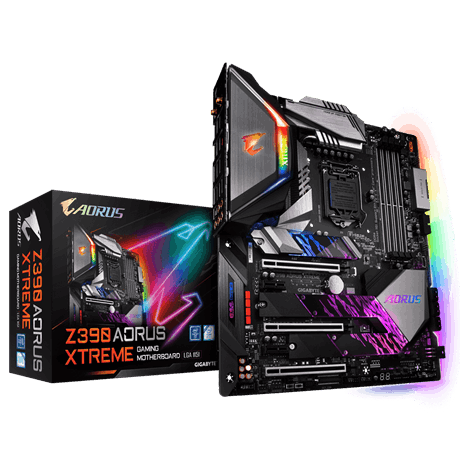

Mainboard GIGABYTE Z390 Aorus Xtreme

Mainboard GIGABYTE Z390 Aorus Xtreme

Mainboard GIGABYTE Z390 Aorus Xtreme

- Chuẩn mainboard: Extended-ATX
- Socket: LGA 1151-v2 , Chipset: Z390
- Hỗ trợ RAM: DDR4 , tối đa 64GB
- Cổng cắm lưu trữ: 1 x M.2 NVMe; 2 x M.2 SATA/NVMe; 6 x SATA 3 6Gb/s; Hỗ trợ Intel Optane
- Cổng xuất hình: 1 x HDMI; 2 x Thunderbolt 3


15,650,000₫

Bộ vi xử lý
Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Bộ nhớ Ram
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Khe cắm mở rộng
1 x PCI Express x16 slot, running at x16 (PCIEX16) . 1 x PCI Express x16 slot, running at x8 (PCIEX8) . 1 x PCI Express x16 slot, running at x4 (PCIEX4) .1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Chipset
Intel® Z390 Express Chipset
Giao tiếp
2 x USB Type-C™ ports on the back panel, with USB 3.1 Gen 2 support Chipset: 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header 4 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.1 Gen 1 ports
Lan
1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)
Âm thanh
Realtek® ALC1220-VB codec ESS ES9018K2M DAC and TI OPA1622 operational amplifiers * The front panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Bộ nhớ
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Cổng I/O phía sau
2 x SMA antenna connectors (2T2R) 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.1 Gen 2 support) 4 x USB 3.1 Gen 2 Type-A ports (red) 2 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks
Cổng I/O ở trong
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x addressable LED strip power select jumpers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x GC-OC Touch add-in card connector 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button 1 x OC button 2 x BIOS switches
Kích thước
E-ATX Form Factor; 30.5cm x 27.1cm
