CPU hỗ trợ | Intel |
Chipset | B760 |
RAM hỗ trợ | - Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
- 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
|
Khe cắm mở rộng | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
|
Ổ cứng hỗ trợ | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
|
Cổng kết nối (Internal) | - 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x S/PDIF Out header
- 1 x Q-Flash Plus button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
|

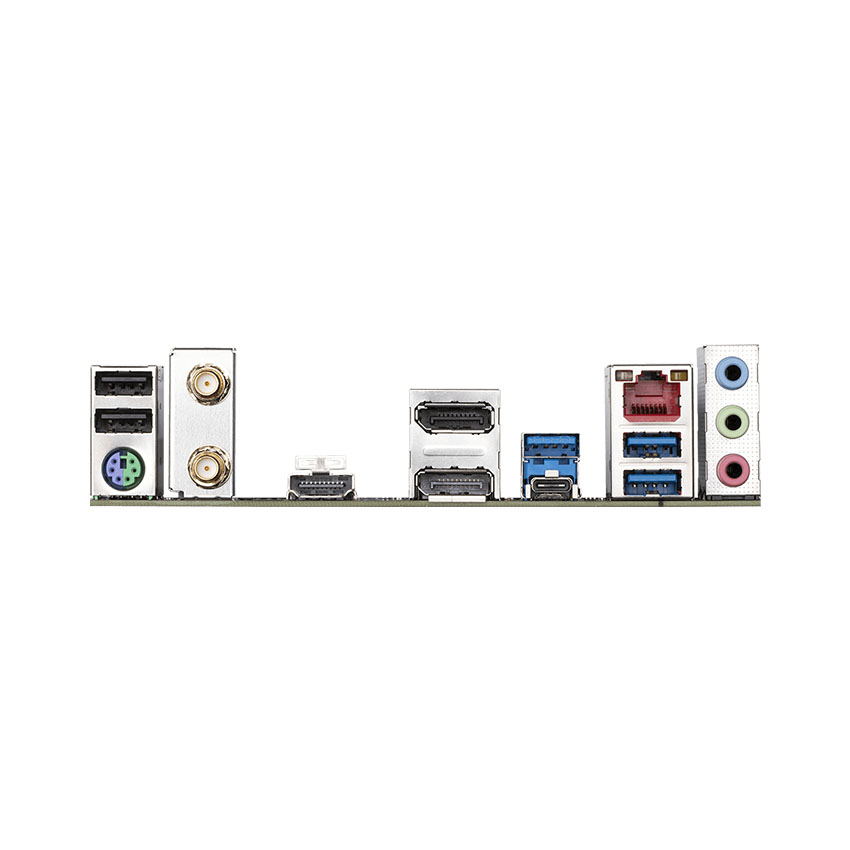

Cổng kết nối (Back Panel) | - 2 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 2 x SMA antenna connectors (2T2R)
- 1 x HDMI port
- 2 x DisplayPorts
- 3 x USB 3.2 Gen 1 ports
- 1 x USB Type-C® port, with USB 3.2 Gen 2 support
- 1 x RJ-45 port
- 3 x audio jacks
|
LAN / Wireless | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Kích cỡ | Micro ATX Form Factor; 24.4cm x 24.4cm |
