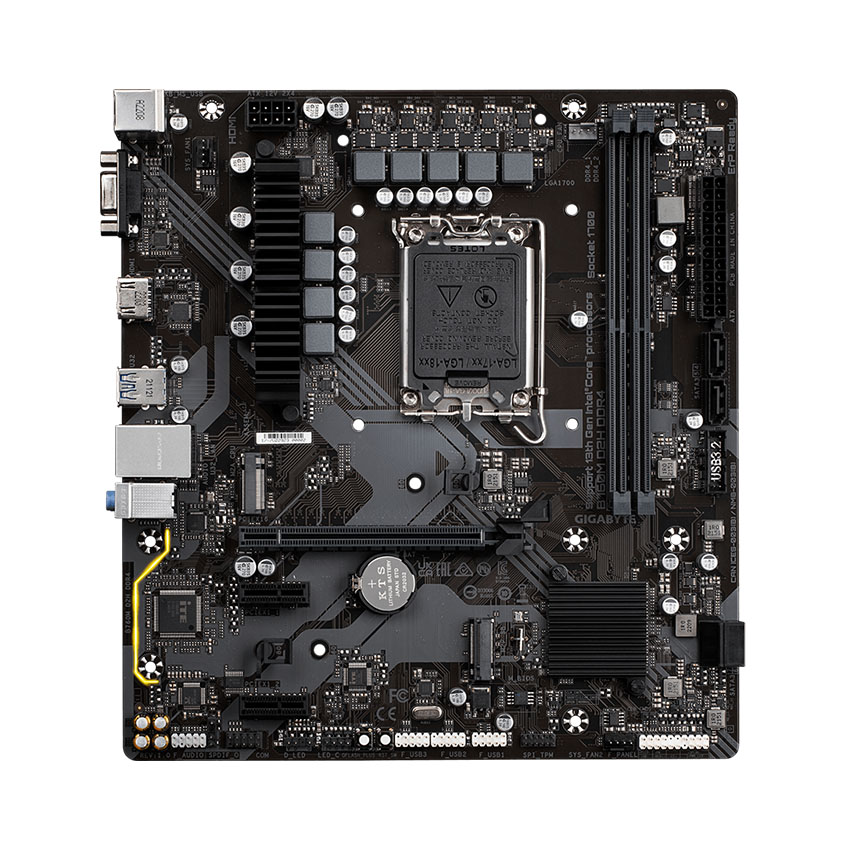

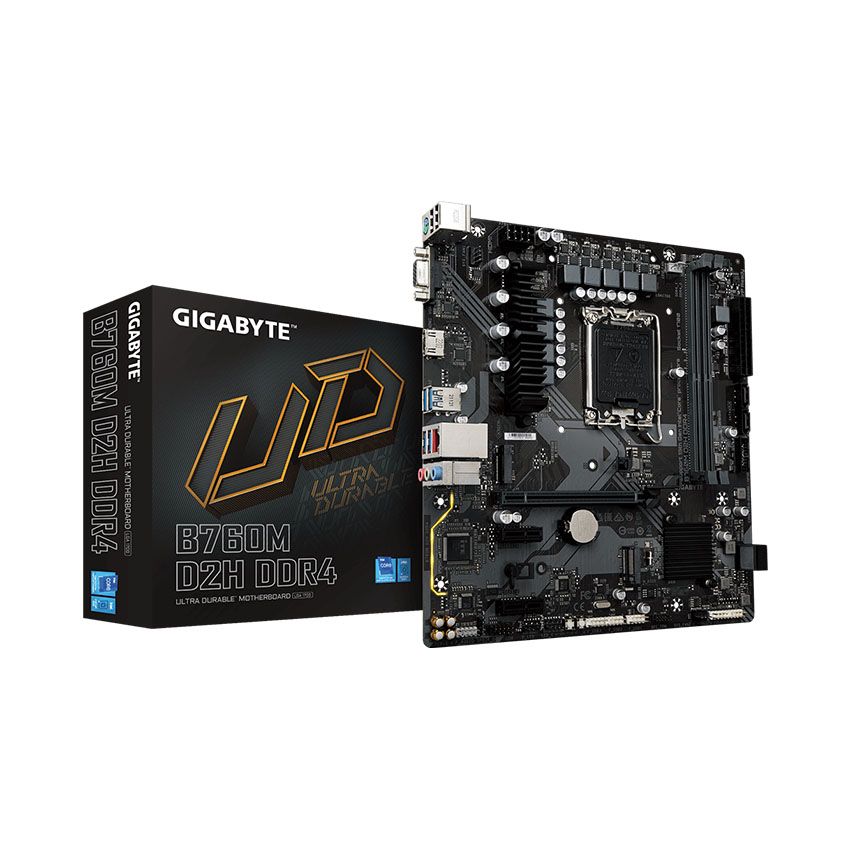

Mainboard Gigabyte B760M D2H DDR4

Thương hiệu: GIGABYTE
2,760,000₫
  • Chipset: Intel B760 - Tương thích với CPU intel thế hệ 12-13
  • Socket: Intel LGA 1700
  • Kích thước: M-ATX
  • Số khe RAM: 2 khe

Bảo hành: 36 tháng

CPU hỗ trợHỗ trợ cho thế hệ thứ 12 and 13 Intel® Core Socket LGA1700
ChipsetB760
RAM hỗ trợSupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
Khe cắm mở rộngCPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Ổ cứng hỗ trợCPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

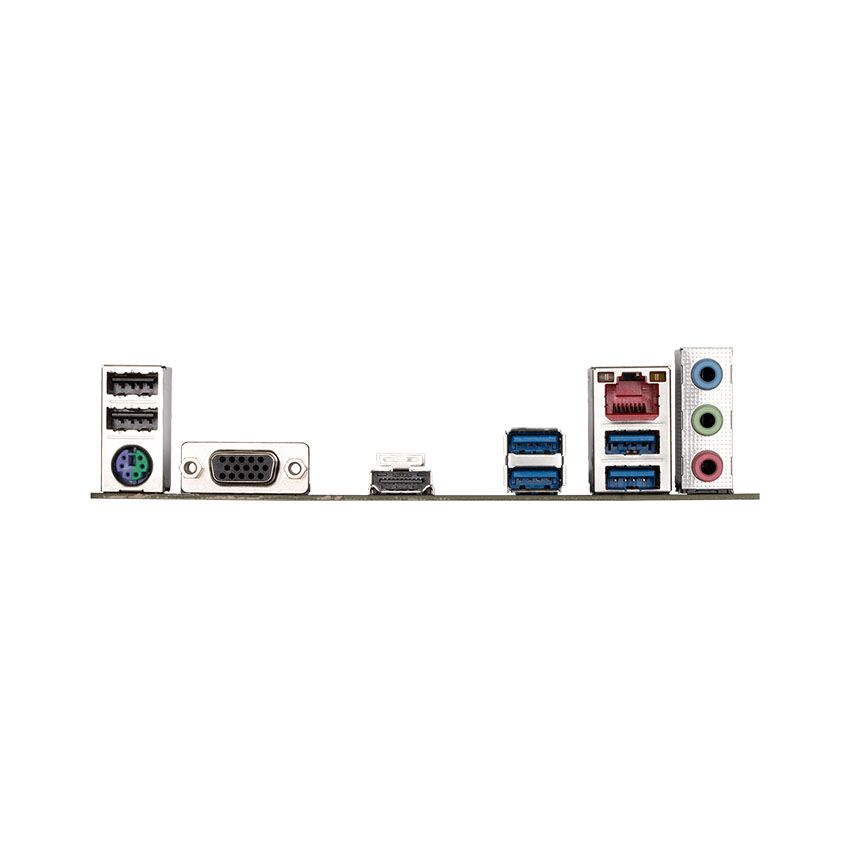

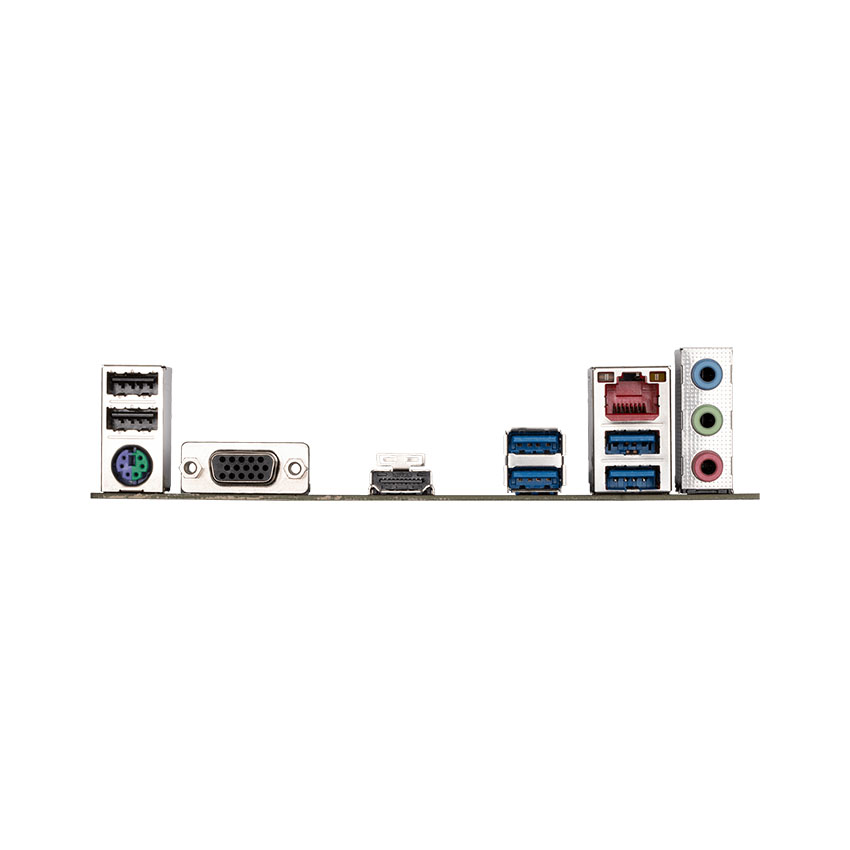

Cổng kết nối (Back Panel)1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
LAN / WirelessRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡMicro ATX Form Factor; 24.4cm x 22.5cm
