PHẦN CỨNG
Port	8 x 10/100/1000Mbps Giga Ethernet with PoE+ PSE, RJ-45 (Each Port can Suppor t Both IEEE 802.3af / 802.3at Mode) 2 x 1000Mbps Fiber, SFP Slot
Nguồn	Voltage: 100 ~ 240VAC PoE Power Budget 110 Watt (up to 30W att per port)
Nút điều khiển	1 x Factory Reset Button
Kích thước	265(L) x 184(W) x 44(H) (10.4" x 7.2" x 1.7")
Trọng lượng	1.68 kg (3.7 lb)
PHẦN MỀM
Chuẩn tương thích	IEEE 802.3 1 0Base-T IEEE 802.3u 1 00Base-T IEEE 802.3ab 1 000Base-T IEEE 802.3x Flow Control Capability ANSI/IEEE 802.3 Auto-negotiation IEEE 802. 1Q VLAN IEEE 802. 1p Class of Service IEEE 802.3ad P ort T runk with LACP IEEE 802. 1az Energy Efficient Ethernet
Network	Up to 4K MAC Address Table Support Jumbo Frame 9KBytes
Management	Firmware Upgrade Support HTTP W eb User Interface (Access by Password) Configuration Upgrade/Backup Discovery by Draytek Vigor Series Router
Chất lượng dịch vụ	Support 4 Queues Rate Limit Port-based (Ingress/Egress) Priority Queue Schedule WFQ Strict Priority Class of Service 802. 1p CoS
Tính năng nâng cao	Security Supports Storm Control Broadcast Multicast Unicast Link Aggregation Support Link Aggregation Group with Following Pairs GE7 and GE8 SFP1 and SFP2 Link Aggregation Control Protocol Only PoE Dynamic Power Budget Distribution Enable/Disable per Port on Management UI VLAN IEEE802. 1Q Port-based/T ag-based VLAN 8 VLANs Simultaneously

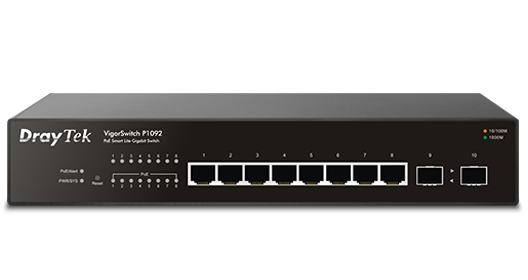

DrayTek VigorSwitch P1092
