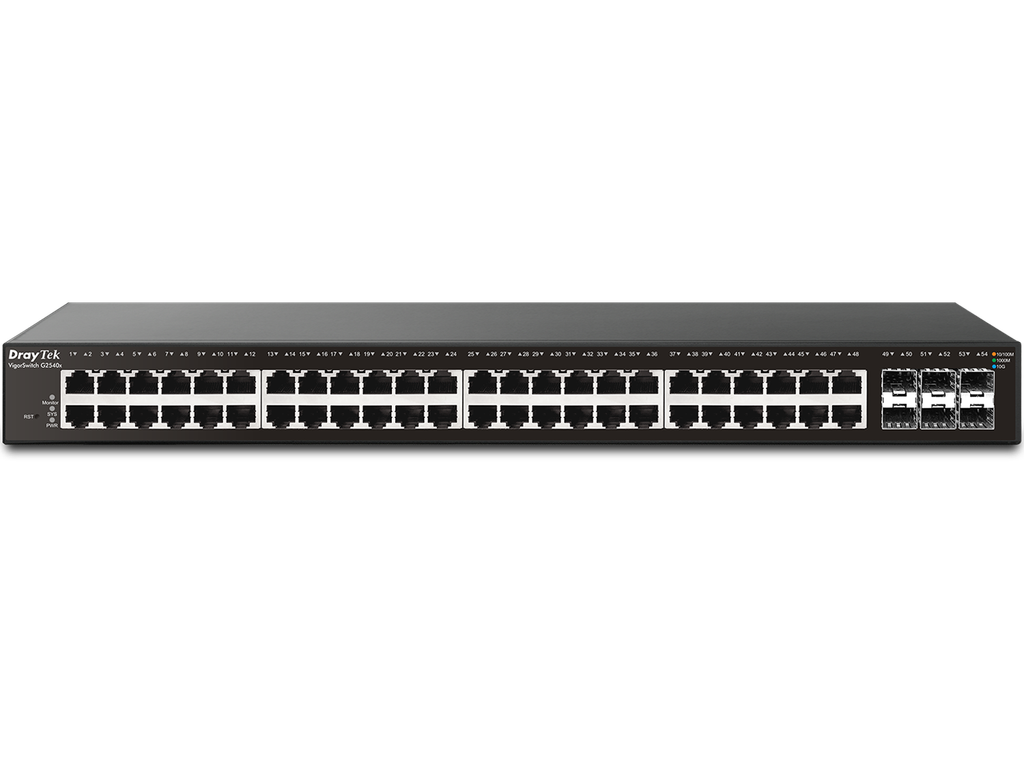

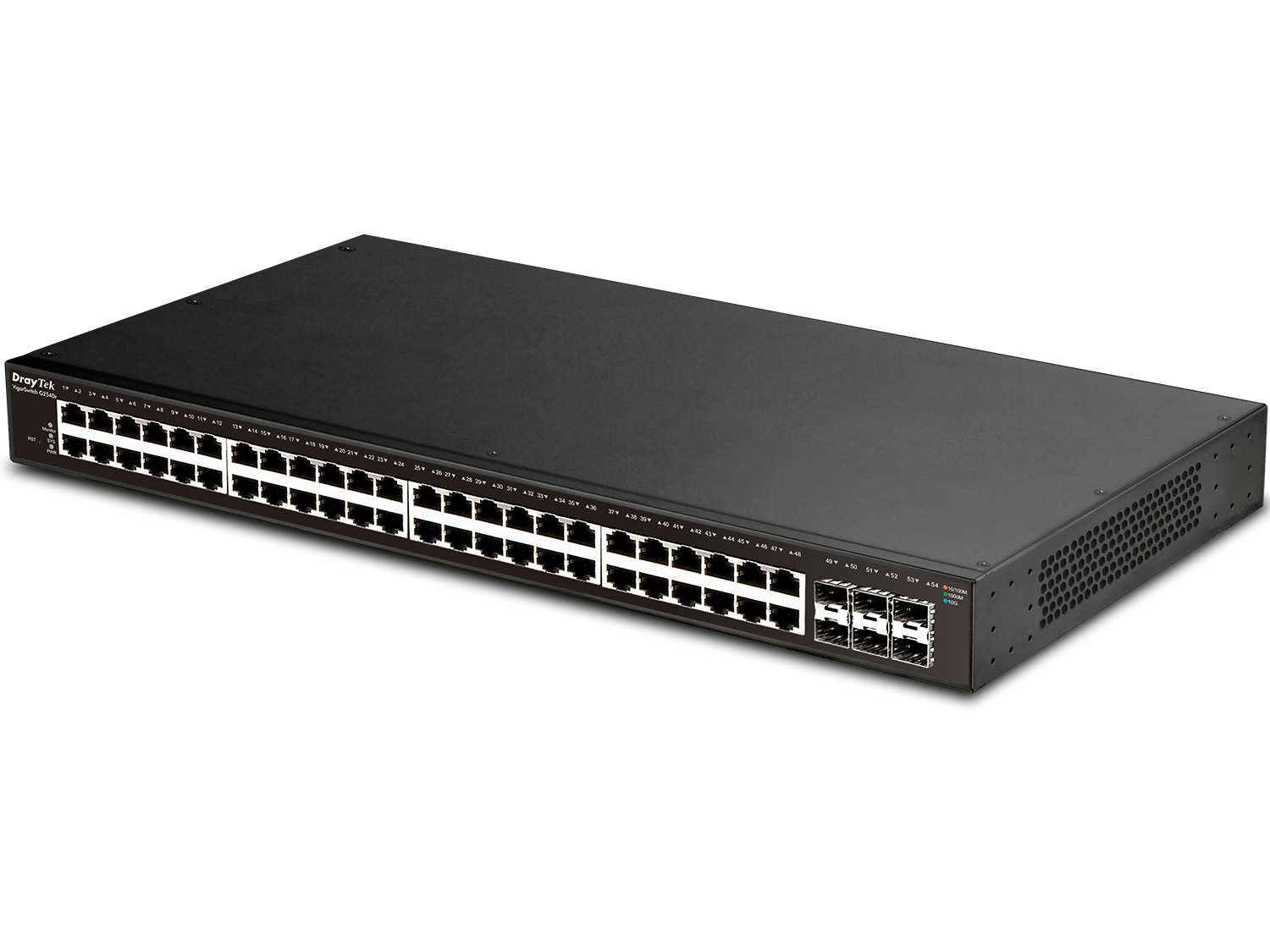

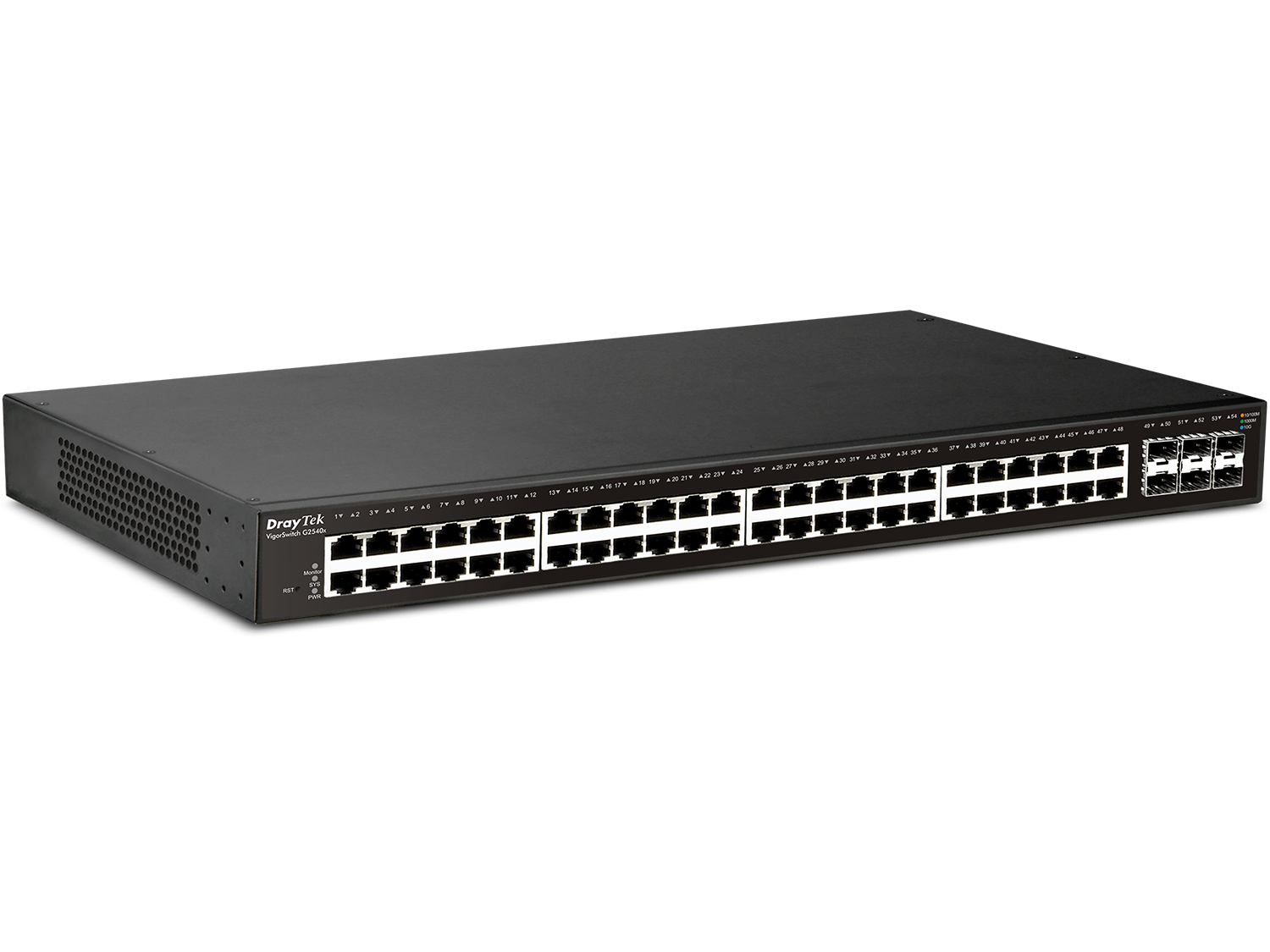

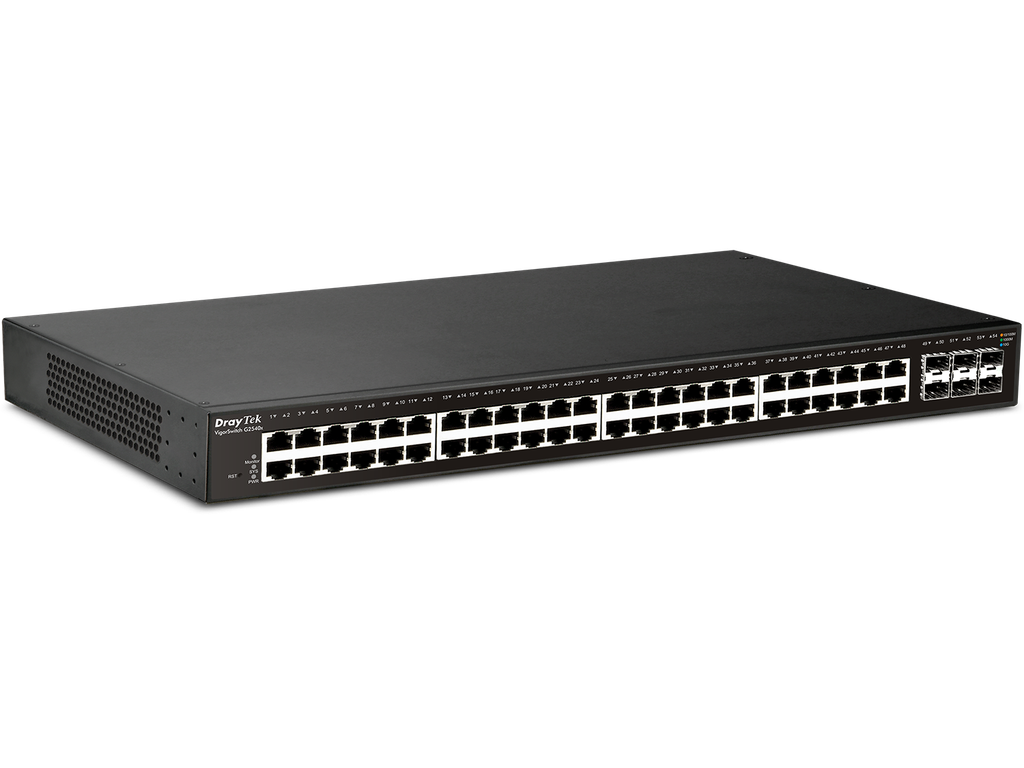

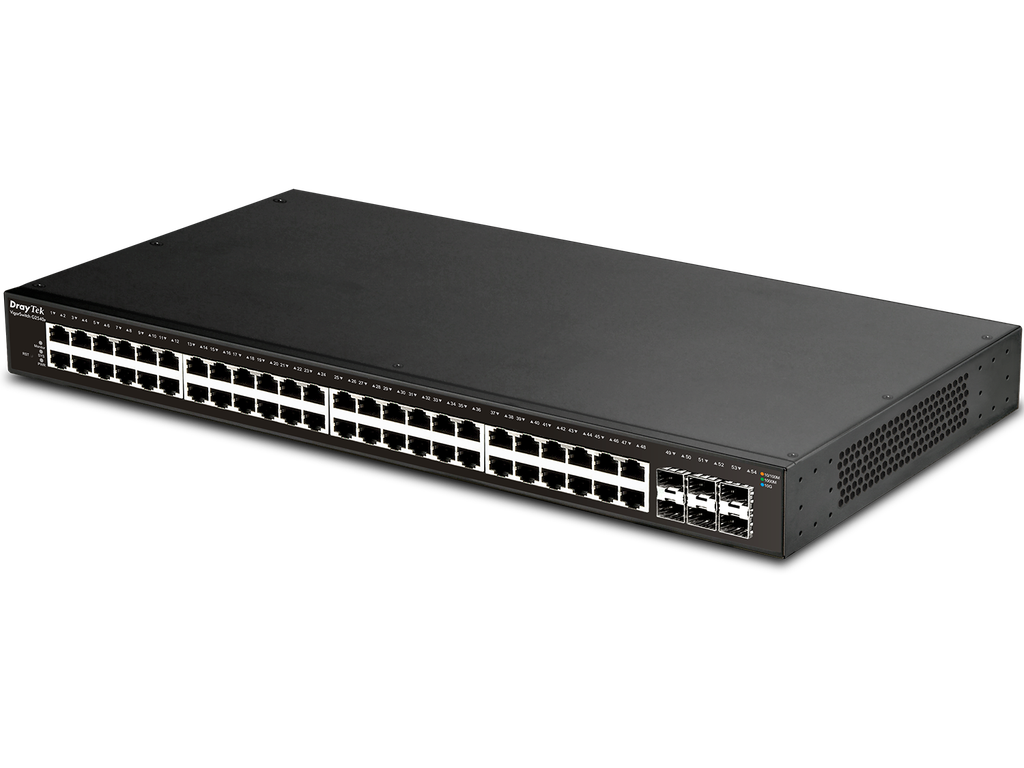

DrayTek VigorSwitch G2540xs

Thương hiệu: DrayTek
14,699,000₫
  • Tính năng: OpenVPN Client, User Authentication: Local Database, RADIUS, TACACS+, sFlow, SNMP: v1, v2c, v3, Private MIB, RMON Group: 1, 2, 3, 9. LLDP, SNTP. DHCP server/ Static Route/ VLAN route.
  • Tốc độ: 10 Gbps (SFP); 1 Gbps (Ethernet)
  • Cổng kết nối: 48 x 1 Gbps RJ-45, 6 x 1/10 GbE SFP

Bảo hành: 24 tháng

PHẦN CỨNG
Port
  • 48 x 10/100/1000Mbps Giga Ethernet, RJ-45
  • 6 x 1/10 GbE SFP slot.
Nguồn
  • Power Voltage: 100 ~ 240VAC, 50 ~ 60 HZ
Nút điều khiển
  • Button: 1x Factory Reset Button
Kích thước
  • 441(W) x 270(D) x 45(H)
Trọng lượng
  • 3.97 kg (8 lb)
PHẦN MỀM
Operation Mode
  • Web Interface: HTTP, HTTPS
  • Command Line Interface:Telnet, SSH
  • OpenVPN Client: Certificate-based authentication
  • User Authentication: Local Database, RADIUS, TACACS+
  • sFlow
  • SNMP: v1, v2c, v3
  • Private MIB: Có
  • RMON Group: 1, 2, 3, 9
  • LLDP: LLDP-MED, Media Endpoint Discovery Extension
  • Mail Alert: Port Status, Port Speed, System Restart, IP Conflict
  • Syslog: Có
  • 2-Level Admin Privilege: Có
  • Multiple Admin Accounts: Có
  • Managed by Vigor Router SWM: Có
  • Config File Export/Import: Có
  • Dual Image: Có
  • SNTP (Simple Network Time Protocol)
  • Diagnostics Tools: Port Mirroring, Ping, Cable Test, Fan Test
  • Layer 3 Features: Static Route, VLAN Route
Chuẩn tương thích
  • 802.3 10Base-T
  • 802.3u 100Base-T
  • 802.3ab 1000Base-T
  • IEEE802.3ae 10GBase-X
  • 802.3x Flow Control
  • 802.3 Auto-Negotiation
  • 802.1q Tag-based VLAN
  • 802.1p Class of Service
  • 802.1d STP
  • 802.1w RSTP
  • 802.1s MSTP
  • 802.3ad LACP
  • 802.1ad QinQ
  • 802.1x Port Access Control
  • 802.1AB LLDP
  • 802.3az EEE
Management
  • Multiple User Account
  • Two-level Security (Admin/User)
  • HTTP(s) Web User Interface
  • Simple Network Time Protocol
  • Link Layer Discovery Protocol
  • LLDP-MED, Media Endpoint Discovery Extension
  • Simple Network Management Protocl v1/v2c/v3
  • Support Generic Traps
  • Command Line Interface (CLI) via Telnet/SSH
  • DrayTek Switch Management
Tính năng nâng cao

VLAN:

- Max.Number of VLAN: 256

- VLAN Type:

  • 802.1q Tag-based
  • MAC-based
  • 802.1v Protocol-Based
  • Management VLAN
  • Voice VLAN
  • Surveillance VLAN

QoS:

  • Number of QoS Queues: 8
  • Queue Scheduling: SPQ, WRR
  • QoS (Class of Service): 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
  • Rate Limit & Shaping: yes

Security:

  •  Access Control List: MAC, IPv4, IPv6
  • Storm Control: Broadcast, Unknown Multicast, Unknown Unicast
  • DoS Defense: yes
  • 802.1x Port Access Control: yes
  • IP Source Guard
  • IP Conflict Prevention
  • Loop Protection
  • Dynamic ARP Inspection
  • DHCP Snooping with Option 82



THÔNG SỐ KHÁC
Chứng chỉ
  • CE
Môi trường
  • Operating Temperature: 0 to 45°C
  • Storage Temperature: -40 to 70°C
  • Operating Humidity: 10 to 90% non-condensing
  • Storage Humidity: 5 to 90% non-condensing
Sản phẩmVigorSwitch P2540xs

PHẦN CỨNG

Port48 x 10/100/1000Mbps Ethernet, RJ-45
6 x 1/10 Gbps SFP+ slot
1 x Console, RJ45
NguồnPower Voltage: 100 ~ 240VAC, 50 ~ 60 HZ
PoE Standards: Poe/ PoE +, mode A
PoE Power Budget: 400 Watts
Nút1 x Factory Reset
Kích thước441(W) x 270(D) x 45(H)

PHẦN MỀM

Management
  • Web Interface: HTTP, HTTPS
  • Command Line Interface:Telnet, SSH
  • OpenVPN Client: Certificate-based authentication
  • User Authentication: Local Database, RADIUS, TACACS+
  • sFlow
  • SNMP: v1, v2c, v3
  • Private MIB: Có
  • RMON Group: 1, 2, 3, 9
  • LLDP: LLDP-MED, Media Endpoint Discovery Extension
  • Mail Alert: Port Status, Port Speed, System Restart, IP Conflict
  • Syslog: Có
  • 2-Level Admin Privilege: Có
  • Multiple Admin Accounts: Có
  • Managed by Vigor Router SWM: Có
  • Config File Export/Import: Có
  • Dual Image: Có
  • SNTP (Simple Network Time Protocol)
  • Diagnostics Tools: Port Mirroring, Ping, Cable Test, Fan Test
Chất lượng dịch vụ
  • Support 8 Queues
  • Queue Scheduling: SPQ, WRR
  • CoS (Class of Service): 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
  • Rate Limit & Shaping
Tính năng nâng cao

PoE

  • Power Limit
  • Scheduled On/Off
  • Power Cycle on Port:  Manual, Ping Watchdog

OpenFlow

  • Version: 1.3
  • Table size: 1920

Security

  • Access Control list : MAC, IPv4, IPv6
  • Support Storm Control - Broadcast, Unknown Multicast, Unknown Unicast
  • DoS Attack Prevention
  • 802.1x Port Access Control
  • IP Source Guard
  • IP Conflict Detection
  • IP Conflict Prevention
  • Loop Detection
  • Dynamic ARP Inspection
  • DHCP Snooping with Option 82

Multicast

  • Up to 256 Multicast Groups
  • IGMP Snooping v2/v3 (BISS)
  • IGMP Querier
  • MLD Snooping v1, v2 (Basic)
  • Group Throttling
  • Group Filtering
  • MVR (Multicast VLAN Registration)

Link Aggregation

  • Supports 8 Link Aggregation Groups with Static & LACP types
  • Up to 8 Ports for Each Group
  • Support Traffic Load Balancing  MAC Address, IP/MAC Address

Diagnostics

  • CPU/RAM/Port Utilization
  • Event Log
  • Port Mirroring
  • Ping
  • Port-based Cable Test

VLAN

  • Support IEEE 802.3Q VLAN
  • Tag-based
  • Port-based
  • Protected Port
  • Voice VLAN (OUI Mode)
  • Management VLAN
  • Surveillance VLAN
  • Port Isolatetion
  • GVRP
  • Q in Q

Layer 3 Features

  • Static Route
  • VLAN Route
  • DHCP Server

THÔNG SỐ KHÁC

Môi trường
  • Operating Temperature: 0 to 45°C
  • Storage Temperature: -40 to 70°C
  • Operating Humidity: 10 to 90% non-condensing
  • Storage Humidity: 5 to 90% non-condensing
