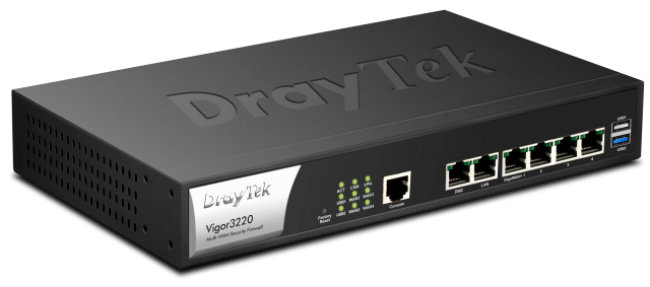

DrayTek Vigor3220

DrayTek Vigor3220

4 cổng Gigabit Ethenet WAN, RJ-45.

1 cổng Gigabit Ethenet LAN RJ-45, 1 cổng DMZ RJ-45 , 2 cổng USB cho phép kết nối USB 3G/4G (cổng 1), Printer...

Multi-WAN Load Balance and Failover.

80.000 NAT Session. Throught put: 900Mbps (Static), 500Mbps (PPPoE), chịu tải lên đến 200 user.

 Hỗ trợ các dịch vụ cao cấp như Leasedline, L2VPN, L3VPN, MegaNET…

VPN 200 kênh (OpenVPN, IPSec(Ikev1,IKEv2, XAuth), SSL, PPTP, L2TP...), VPN Trunking (LoadBalance/Backup), VPN qua 3G/4G (Dial-out).

8,600,000₫

PHẦN CỨNG
Port
  • 4 x 10/100/1000Base-Tx WAN Port, RJ-45
  • 1 x 10/100/1000Base-Tx LAN Switch, RJ-45
  • 1 x 10/100/1000Base-Tx DMZ Port, RJ-45
  • 2 x USB Host (USB1 is 2.0 and USB2 is 3.0)
  • 1 x Console Port, RJ-45
Nguồn
  • Power AC100-240V/ 1.0A
  • Power Consumption 19 watt
Nút điều khiển
  • 1 x Factory Reset Button
Kích thước
  • L 273 * W 176 * H 46 ( mm )
PHẦN MỀM
WAN

Multi-WAN  (Ethernet / 3.5G)

  • Outbound Policy-based Load-balance
  • WAN Connection Failover

WAN Protocol

  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
Network



  • Packet Forwarding Acceleration
  • DHCP client/relay/server
  • DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
  • IGMP v2/v3
  • LAN DNS /DNS Forwarding
  • Dynamic DNS
  • NTP client
  • Call scheduling
  • RADIUS /TACACS+ Client
  • RADIUS Server
  • Active Directory /LDAP compatible (client)
  • DNS cache/proxy
  • UPnP 50 sessions
  • Wake on LAN
  • Bonjour service
  • Routing protocol :
    • Static routing (IPv4 static route 40 entries, and IPv6 static route 40 entries)
    • RIP v1/v2



Management



  • Web-Based User Interface (HTTP/HTTPS)
  • Quick Start Wizard
  • CLI (Command Line Interface, Telnet/SSH)
  • Administration Access Control
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP/FTP/HTTP/TR-069
  • Logging via Syslog
  • SNMP Management with MIB-II
  • Management Session Time Out
  • 2-level management (Admin/User Mode)
  • TR-069 Management
  • TR-104 Management



Chất lượng dịch vụ



  • QoS :
    • Guarantee Bandwidth for VoIP
    • Class-based Bandwidth Guarantee by User-defined Traffic Categories
    • DiffServ Code Point Classifying
    • 4-level Priority for Each Direction (Inbound/Outbound)
    • Bandwidth Borrowed
  • Bandwidth / Session Limitation
  • Layer-2 (802.1p) and Layer-3 (TOS / DSCP) QoS Mapping *



VPN
  • Up to 100 VPN Tunnels (including 50 SSL VPN tunnels)*
  • Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
  • Encryption: MPPE and Hardware-based AES/DES/3DES
  • Authentication: MD5, SHA-1
  • IKE Authentication: Pre-shared Key and Digital Signature (X.509)
  • LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
  • DHCP over IPSec
  • IPSec NAT-Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Pass-Through
  • mOTP
Tính năng nâng cao



 Firewall

  • DMZ Host, Port-redirection(Up to 40 entries) and Open Port(Up to 40 entries)
  • Object-based Firewall
  • MAC Address Filter
  • SPI (Stateful Packet Inspection) (Flow Track)
  • DoS Prevention
  • IP Address Anti-Spoofing
  • E-mail alert and logging via Syslog
  • Bind IP to MAC Address
  • Time Schedule Control

Central Device Management

  • AP Management : 30 nodes (independent with External Device feature)*
  • Central VPN Management : 8 nodes
  • Switch Management : 10 nodes *

Content Security Management (CSM)

  • APP Enforcement
    • Support APPE Signature Upgrade by license.
  • URL Content Filter
    • Access Control : URL Keyword Blocking (White/Black List)
    • Web Feature : Java Applet, Cookies, Active X, Compressed,Executable,Multimedia File Blocking
  • Web Content Filter (support Cyren and BPjM )



USB
  • 3.5G (HSDPA) and 4G (LTE) as WAN5 by using USB dongle
    (USB1: disk/sensor/printer,USB2: 3G/LTEdongle/disk/sensor/printer)
  • File System :
    • Support FAT32 / FAT16 file system
    • Support FTP function for File Sharing
