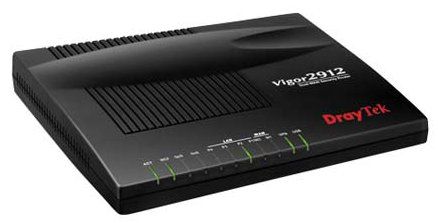

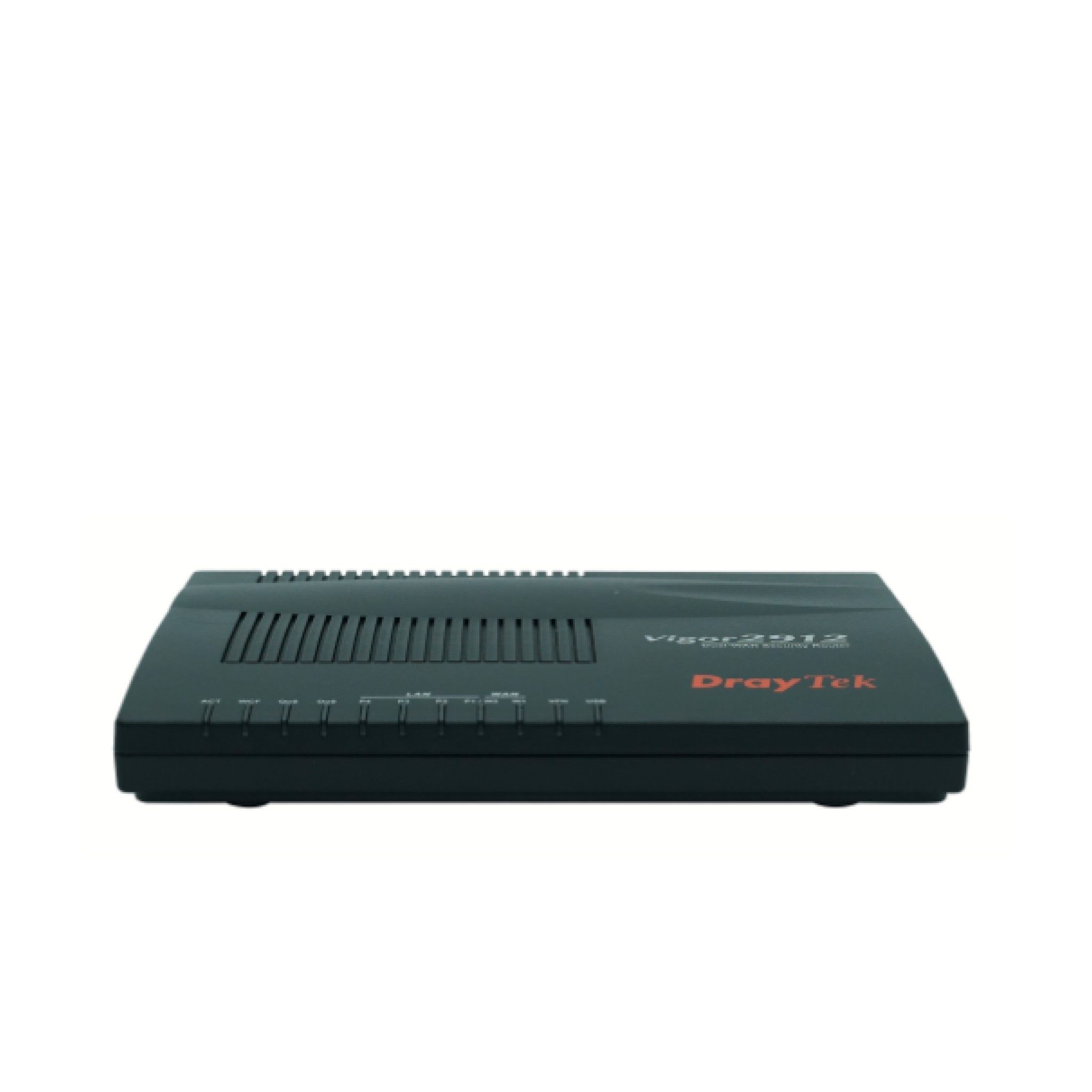

Draytek Vigor 2912

Draytek Vigor 2912

2 cổng Fast Ethernet WAN (WAN 2 chuyển đổi từ LAN 1), RJ45.

4 cổng Fast Ethernet LAN, RJ45. 1 cổng USB cho phép kết nối USB 3G/4G, Printer...

Dual-WAN Load Balance/Failover. Hỗ trợ đường truyền đa dịch vụ: IPTV, Internet, VoIP...

30.000 NAT Session, Throughput: 93Mbps (Static). Khả năng chịu tải lên đến 50 user. Hỗ trợ triển khai các dịch vụ cao cấp: Static IP, PPPOE, PPTP,L2TP, DHCP…

VPN 16 kênh (GRE, IKEv2, 8 kênh VPN SSL...), VPN qua 3G/4G (Dial-out).

Hỗ trợ Wi-Fi Marketing từ nhà phát triển thứ 3(Meganet, VNWIFI, Nextify...).

2,185,000₫

PHẦN CỨNG
Port
  • 1 x 10/100 Base-TX WAN, RJ45, Configurable WAN2 on P1
  • 4 x 10/100 Base-TX LAN, RJ45
  • 1 x USB Host 2.0 (for 3G USB Modem/USB Disk)
Nguồn
  • Power Adapter DC 12V/1A
  • Max. Power 10 watt
Nút điều khiển
  • 1 x Factory Reset Button
Kích thước
  • L220 * W160 * H36 ( mm )
PHẦN MỀM
WAN

Ethernet

  • IPv4-  DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1p/q Multi-VLAN Tagging
  • IPv6- Tunnel Mode: PPP, TSPC, AICCU, 6in4, 6rd
               Dual Stack:DHCPv6 Client, Static IPv6, DSLite*
  • USB WAN
    • PPP
  • Outbound Policy-based Load-balance
  • WAN Connection Failover
  • 30,000 NAT Sessions
Network



  • DHCP Client/Relay/Server
  • RADVD for IPv6
  • DHCPv6 Server
  • Static IPv6 Address Configuration
  • IGMP Proxy V2/V3
  • IGMP Snooping
  • Dynamic DNS
  • NTP Client
  • RADIUS Client
  • DNS Cache/Proxy
  • UPnP 30 Sessions
  • Routing Protocol:
  • Static Routing
  • RIPv2
  • VLAN Tagging(802. 1q) on LAN*
  • Support Route Policy Function



Management



  • Web-based User Interface (HTTP/HTTPS)
  • Quick Start Wizard
  • CLI (Command Line Interface, T elnet/SSH)
  • Administration Access Control
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP/FTP/HTTP/TR-069
  • Logging via Syslog
  • SNMP V2/V3
  • Management Session Time Out
  • Two-level Management (Admin/User Mode)
  • External Device
  • TR-069



Chất lượng dịch vụ



  • QoS :
    • Guarantee Bandwidth for V oIP (VoIP QoS)
    • Class-based Bandwidth Guarantee by User-defined Traffic Categories
    • DiffServ Code Point Classifying
    • 4-level Priority for Each Direction (Inbound/Outbound)
    • Bandwidth Borrowed
  • Bandwidth/Session Limitation
  • Layer-3 (TOS/DSCP) QoS Mapping
  • Smart Bandwidth Limitation (Triggered by Traffic/Session)



VPN
  • Offer 16 VPN Tunnels and 8 SSL VPN tunnels
  • Protocol : PPTP, IPSec, L2TP, L2TP over IPSec
  • Encryption : MPPE and Hardware-based AES/DES/3DES
  • Authentication : MD5, SHA-1
  • IKE Authentication : Pre-shared key and Digital Signature (X.509)
  • LAN-to-LAN, Host-to-LAN
  • IPsec NAT-traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Backup Mode
  • DHCP over IPSec
  • VPN Pass-through
  • VPN Wizard
  • mOTP
Tính năng nâng cao

Firewall

  • Multi-NAT, DMZ Host, Port-redirection and Open Port
  • Object-based Firewall
  • MAC Address Filter
  • SPI (Stateful Packet Inspection) (Flow Track)
  • DoS/ DDoS Prevention
  • IP Address Anti-spoofing
  • E-mail Alert and Logging via Syslog
  • Bind IP to MAC Address
  • Time Schedule Control
  • User Management

CSM

  • (Content Security Management)
  • IM/P2P Application
  • GlobalView Web Content Filter (Powered by CYREN )
  • URL Content Filter :
  • URL Keyword Blocking (Whitelist and Blacklist)
    Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking,
  • Excepting Subnets
USB
  • File Sharing:
    • Support FAT32 File System
    • Support FTP Function for File Sharing
    • Support Samba for File Sharing
  • 3.5G (HSDPA)/4G (LTE)* as WAN3
